Vacuum Brush Roll Not Spinning: Causes and Step-by-Step Fixes

Why Your Vacuum Brush Roll Is Not Spinning

If your vacuum brush roll is not spinning, the cause is almost always one of three things: hair and string wrapped tightly around the roller, a broken or slipped drive belt, or a brush on/off switch left in the wrong position. Most of these you can diagnose and fix yourself in a few minutes with no tools or a single screwdriver. The trick is working through the possibilities in the right order so you don’t replace a belt when the real problem was a flipped switch.

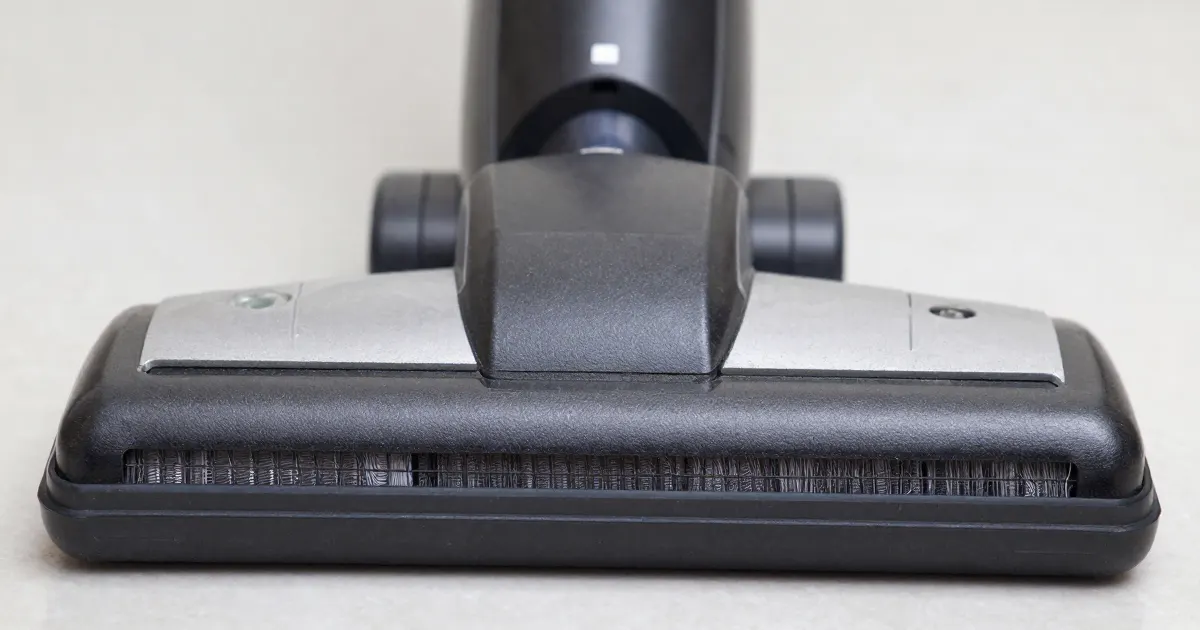

The brush roll (also called the beater bar or brush bar) is the spinning cylinder with stiff bristles on the underside of an upright vacuum or in a powered floor head. It agitates carpet fibers to lift dirt. When it stops turning, the vacuum still sucks, but it stops cleaning carpet effectively—which is exactly why the fix matters.

Fix It in Order: Start Here

Work through these steps in sequence. Stop as soon as the brush roll spins freely and correctly under power.

Unplug the vacuum first. Never put your hands near the brush roll while it can start. If your model has a removable battery, take it out.
Flip the vacuum over and look at the brush roll on the underside of the head.
Cut away wrapped hair and string from the roller and its end caps (details below).
Spin the roller by hand to confirm it turns freely.
Check the brush on/off switch (carpet vs. bare-floor mode).
Inspect the drive belt for breaks, stretch, glazing, or being off its track.
Reset the brush-roll protection if your model has one.
Replace the belt or roller if they’re worn.

Step 1: Unplug and Inspect the Roller

Safety comes first. Pull the plug from the wall—don’t just switch the vacuum off—so the motor can’t start while your fingers are near the bristles. Turn the head over on a hard surface where you can see the full length of the brush roll.

Look at the whole roller and, importantly, the end caps where the roller meets the housing on each side. Hair loves to bury itself in these end caps, out of sight, where it wraps around the bearing or axle and jams everything.

Step 2: Remove Wrapped Hair and String

Wrapped hair is the single most common reason a brush roll won’t spin, and it’s the easiest to fix.

Use scissors, a seam ripper, or a dedicated cleaning tool to slice through the wrapped hair along the length of the roller.
Peel the cut hair away in strips.
Pay special attention to the end caps. On many models these pop or unscrew off so you can clear the hidden buildup underneath—check your manual, since the method varies by brand.
Some vacuums have a removable brush roll that lifts out entirely once a cover or the belt is released, making cleaning far easier.

After clearing it, spin the roller by hand. It should turn smoothly with only light resistance. If it’s stiff, grinding, or won’t turn, you may have a jam deeper in the bearings, worn bearings, or a physical obstruction—keep going.

Step 3: Confirm the Brush On/Off Switch Setting

This is the step people skip, and it wastes more time than any other. Many vacuums have a brush roll on/off control or a carpet / bare-floor mode. In bare-floor (hard-floor) mode, the brush roll is deliberately switched off to protect hard flooring. That’s not a fault—it’s working as designed.

Find the switch or mode selector. Labels differ by model: it might say “Carpet / Bare Floor,” “Brush On / Off,” or use icons.
Set it to the carpet or brush-on position.
Test again.

How to tell this apart from a belt problem: if the switch is simply set wrong, the brush is disabled—the motor runs fine, there’s no burning smell, and flipping the switch fixes it instantly. If it’s a belt problem, the brush won’t turn even when it should, and you’ll often smell burning rubber.

Step 4: Inspect the Drive Belt

On upright vacuums, a rubber drive belt connects the motor to the brush roll. Belts are consumable parts—they stretch, slip, and snap over time. This is one of the most common failures on uprights.

Access the belt by removing the sole plate, brush cover, or head housing. The method varies significantly by model, so check your manual before prying anything.

Once you can see the belt, look for:

A broken or missing belt — the obvious culprit; the brush gets no power at all.
Stretch or slipping — a loose belt slips on the pulley instead of driving the roller, especially under load in thick carpet.
Glazing — a shiny, hardened, cracked surface from heat and age; a glazed belt grips poorly.
Off the track — the belt has slipped off the motor shaft or the roller pulley and needs to be reseated.
Burning-rubber smell — a classic sign the belt is slipping and overheating against a spinning shaft. Stop using the vacuum until it’s fixed; a slipping belt can overheat.

If the belt is simply off its track, reseating it may solve the problem for free. If it’s stretched, glazed, or broken, it needs replacing. There’s a full walkthrough in our vacuum belt replacement guide.

Step 5: Reset the Brush-Roll Protection

Many modern vacuums include a brush-roll motor protection or safety cutout. When the roller jams—usually from wrapped hair or an obstruction—the system shuts the brush off to protect the motor or belt from damage. Sometimes a warning light comes on.

If yours has this feature, you’ll typically need to:

Clear whatever caused the jam (Steps 1–2).
Turn the vacuum off and unplug it.
Wait a short period, then reset per the manual—this may be automatic on restart, a dedicated reset button, or simply power-cycling.

The reset method and any indicator lights vary by model, so check your manual. Don’t assume a button combination you saw for a different brand applies to yours.

Step 6: Replace a Worn Belt or Roller

If you’ve cleared the hair, confirmed the switch, and the brush still won’t drive properly, the parts themselves are likely worn.

Worn belt: replace it with the correct belt for your model. Belt type and size vary widely—a belt from a different model may be too loose or too tight, so match the part number in your manual or on the old belt.
Worn roller bearings or bristles: if the roller doesn’t spin freely by hand even with nothing wrapped around it, the bearings may be shot. If the bristles are worn down to nubs, the brush can’t agitate carpet even while spinning. In both cases, replace the roller.

If the brush still won’t turn after a new belt and a freely spinning roller, the problem may be in the brush motor or wiring (common on separately-motorized powered heads rather than belt-driven uprights). At that point, consult a repair technician or your manufacturer’s support.

When It’s More Than the Brush Roll

If your vacuum has lost cleaning power in general—not just a stopped brush—the issue may be airflow rather than the roller. A clog or full bag can reduce suction across the whole machine. See our guide on why your vacuum has no suction to rule that out. For a broader walkthrough of every common vacuum fault, start with our complete vacuum cleaner troubleshooting guide.

Frequently Asked Questions

Why does my vacuum smell like burning rubber?

A burning-rubber smell almost always means the drive belt is slipping or has snapped and is dragging against a spinning motor shaft. The friction overheats the rubber. Stop using the vacuum, unplug it, and inspect the belt—it likely needs reseating or replacing. Running it with a slipping belt can cause further damage.

How do I know if it’s the belt or the brush switch?

If the switch is set wrong (bare-floor mode), the brush is simply disabled: the motor sounds normal, there’s no smell, and flipping to carpet mode fixes it instantly. If it’s the belt, the brush won’t turn even in carpet mode, and you’ll usually notice a burning-rubber smell or a visibly broken belt when you open the head.

How often should I replace my vacuum’s belt?

It depends on use and belt type, so there’s no universal figure—check your manual for any recommended interval. In practice, replace the belt when you notice slipping, a burning smell, glazing (a shiny hardened surface), cracks, or a brush roll that won’t keep up under load. A stretched belt is worth replacing even before it snaps.

Can wrapped hair damage my vacuum?

Yes. A tightly wrapped roller forces the belt to slip, which wears it out faster and can trigger the brush-roll protection cutout if your model has one. Over time the strain can also wear the roller bearings. Clearing hair from the roller and end caps regularly is the single best way to keep the brush roll spinning and extend the life of the belt.
